View Issue Details

IDProjectCategoryView StatusLast Update
0016400MMW 5Main Panelpublic2020-08-29 23:32
ReporterLudek Assigned To
PriorityhighSeverityminorReproducibilityalways
Status closedResolutionfixed
Product Version5.0
Target Version5.0Fixed in Version5.0
Summary0016400: Menus: Checkboxes are vertically misaligned with icons

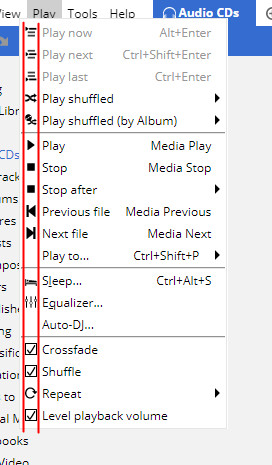

DescriptionCheckboxeds in menus are vertically misaligned with icons.
See the attached screenshot.
TagsNo tags attached.
Attached Files
Fixed in build2229

Activities

Ludek

2020-02-25 21:37

developer   ~0056883

Fixed in 2229

rusty

2020-03-05 21:39

administrator   ~0057060

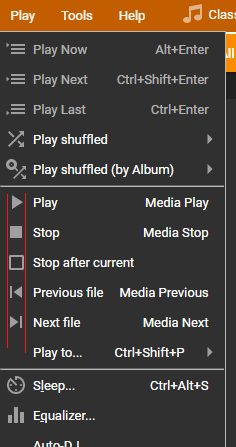

Tested 2229 and 'Stop after current' still appears off-center.

Ludek

2020-03-05 21:54

developer   ~0057063

Last edited: 2020-03-05 22:14

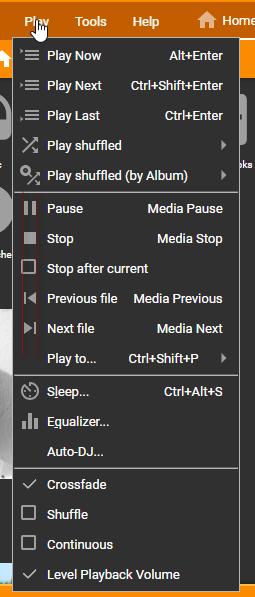

Strange, it is not the case on my machine, see attached screenshot.

It is probably just caused by aliasing (the pixel is rounded up point to the right or to the left when rendering the SVGs).

Resolving as it is really a minor issue (and hard to fix).


peke

2020-03-27 01:40

developer   ~0057369

Verified 2235

I also can't replicate on my PC and my res uses 16:10 ratio (1920x1200)

rusty

2020-05-20 12:52

administrator   ~0058134

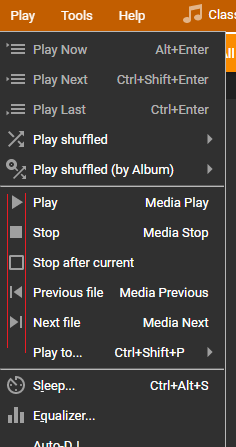

Re-tested in 2250 and the Play icon is still a pixel off center to the right (as it is in Ludek's last image). Probably not worth fixing.

peke

2020-08-29 23:29

developer   ~0059539

Re verified 2265

I am unable to reproduce

peke

2020-08-29 23:32

developer   ~0059540
